| Place of Origin: | CHINA |
| Brand Name: | HONGE |
| Certification: | CE/ISO9001 |
| Model Number: | HYPW-270-300 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Wooden package or PE film or naked |
| Delivery Time: | 90 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | About three months |
| Product Name: | Cross Lapper | Structure: | Clamp On |
|---|---|---|---|
| Speed: | Approx. 70m/min | Input Width: | Max.2700mm |
| Output Width: | Max.3000mm | Control System: | Servo Motor Control |
| Usage: | Converting Single Web To Overlapped Form In Required Width And Thickness. | ||
| Highlight: | High Speed Cross Lapper Machine,Nonwoven Fabric Cross Lapper Machine,Automation Control Cross Lapper Machine |
||

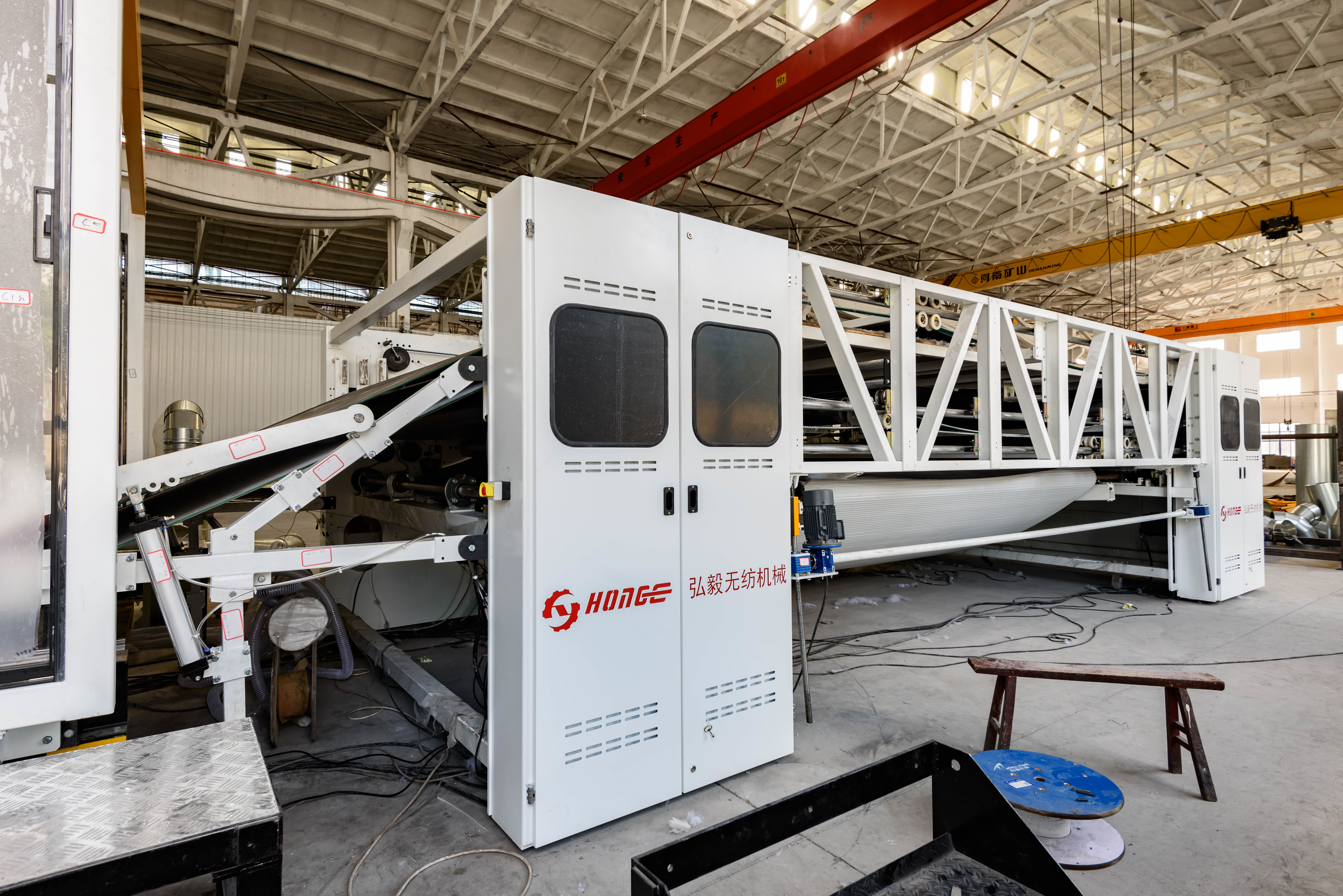

HONGE 70m/Min Nonwoven High Speed Clamp-on Cross Lapper Machine
Product Details:
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HONGE |
| Certification: | CE /ISO9001 |
| Model Number: | HYPW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: |
Wooden package,PE film or naked |
| Delivery Time: | 100 working days after receiving advance payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2 sets 100 days |
Description
| Name: | Automatic Cross Lapper Machine With Servo Motor | Input Width: | Max.2700mm |
|---|---|---|---|
| Output Width: | Max.8000mm | Electric Power Supply Required: | 380V 50HZ(Can Be Changed) |
| Core Components: | PLC, Bearing, Gearbox, Motor, Pressure Vessel, Gear | Speed: | Max. 100m/min |
| Usage: | Make The Fiber Web Into Certain Width And Weight. | ||
| High Light: |
Nonwoven Cross Lapper Machine, 70m/Min Cross Lapper Machine, Clamp-on Cross Lapper Machine |
||
Characteristics:
a. Machine frame is 8mm thickness armor plate assembled with brace.
b. Anti-static PVC lattices are for transferring, cross lapping and compensating. Bottom belt is aluminum-alloy lattice.
c. Each lattice driving roller is seamless steel, and specially strengthened at the ends of axletree.
d. Cross lapping and Reciprocating is subsection controlled accurately.
e. Reciprocating adopt synchronous belt for drive.
Features:
1. To fold and pave the mesh after carding evenly into certain width and thickness, then transfer it to next procedure after pressurization.
2. The output layer has high uniformity, smooth surface, and the product has two edges neatly and trimmingly, and the product quality is stable.
3. The use of high-performance frequency conversion or servo drive, stable operation, fast response.
4. The use of anti-static high-strength carbon curtain, to avoid stress deformation of the cotton layer operation.
5. Adopt unique corrective control principle.
6. Using a data control system, the output uniformity can be fully compensated with actual process requirements.
7. input and output is controlled synchronously, to avoid breakage of the cotton layer stretch.
8. Adopt man-machine interface for parameter setting and input of process data.
9. abnormal fault alarm automatically
10. Output bottom curtain width is detected automatically
Specifications of the machine for pp nonwoven fabric mattress & felt production line
| Name | Nonwoven Cross lapper machine |
| Input width | Max.2700mm |
| Output width | Max.8000mm |
| Working speed | max. 70m/min |
| Electric power supply required | 380V 50HZ(Can be changed) |
Pre-Sales Service
*Inquiry and consulting support
*Sample testing support
*View our factory
After-Sales Service
* Training how to install the machine , training how to use the machine
* Engineers available to service machinery overseas
* Warranty :12 months
* Certificate : ISO9001 CE
Trade information
* Payment terms : 30%deposite by TT,LC
* Delivrey time :Appox 100 working days after receiving the advance payment
* Package : nake, wooden case
* Warrantty:12 months
* After sales service: we will send 1 or 2 workers to do the installation and commissioning of the line at the request of the buyer . and the buyer should provide round-trip air plane tickets , accommodation and allowance, the allowance is 170USD /person/day
* HS code: 84490090
* MOQ: 1set
Catalogue Information Link:Catalogue THERMAL BONDING PRODUCTION LINE.pdf
Company Introduction :
We are HongYi Nonwoven Machinery CO., LTD. , more than 10 years in china,about 100 workers ,5000m2 workshop
Occupied more than 10% market share in Chinese nonwoven machinery market.Until now, we have established 10 series 0f nonwoven machinery all over the country and also expand our business scope abroad, up to date, we have exported production line to Southeast Asia, Europe, South America and Austria, etc.We are applying for the certificate of ISO 9001 and CE.Below are the main kinds of our products, from which you may acquaint yourselves with some of items we handle: 1)wasted cloth recycled production line. 2)felt production line. 3)100% cotton fabric production line. 4)nonwoven fabric productiobn line. 5)geo production line.6) Hot air through nonwovens production line; 7) PET acoustic panels, etc.
